Format Fusion360
Format de bibliothèque outil selon standard JSON (JavaScript Object Notation).
Figure 1 Fusion 360
Exemple de définition d’un outil:
{
"data":
[
{
"BMC":
"carbide",
"GRADE":
"Mill Generic",
"description":
"MINIATURE END MILL - STUB & STANDARD - 4 FLUTE - 0.0320 DIA X
0.048",
"geometry": {
"CSP":
false,
"DC":
0.032,
"HAND":
true,
"LB":
0.28404,
"LCF":
0.048,
"NOF":
4,
"NT":
1,
"OAL":
1.5,
"RE":
0.016,
"SFDM":
0.125,
"TA":
0,
"TP":
0,
"shoulder-length": 0.048,
"thread-profile-angle": 60,
"tip-diameter": 0,
"tip-length": 0,
"tip-offset": 0
},
"guid": "0009e813-0100-439d-9b7a-222e2a40d9eb",
"post-process": {
"break-control": false,
"comment":
"0",
"diameter-offset": 0,
"length-offset": 0,
"live":
true,
"manual-tool-change": false,
"number": 0,
"turret": 0
},
"product-id": "24632",
"product-link":
"http://www.harveytool.com/ToolTechInfo.aspx?ToolNumber=24632",
"reference_guid": "0",
"shaft": {
"segments": [
{
"height": 0.17354,
"lower-diameter": 0.032,
"upper-diameter": 0.125
}
],
"type":
"shaft"
},
"start-values": {
"presets": [
{
"description": null,
"f_n": 1,
"f_z": 0.25,
"guid":
"5ecdcbd5-28a4-4d50-a08e-952d1cddd5d5",
"n": 1,
"n_ramp": 1,
"name": "Default Preset",
"tool-coolant":
"flood",
"v_c": 0.008377580409572781,
"v_f": 1,
"v_f_leadIn": 1,
"v_f_leadOut": 1,
"v_f_plunge": 1,
"v_f_ramp": 1,
"v_f_retract": 1
}
]
},
"type":
"ball end mill",
"unit":
"inches",
"vendor": "HARVEY TOOL"
}
]
}
Fichier Tools : Fichier ZIP avec extension .tools contenant le fichier JSON. Renommer le fichier en .Zip et décompresser pour relecture.
Exporter et importer une librairie
Copy or Backup your libraries to a local system drive.
There are a number of ways and a number of reasons to Export/Import your tool library data.
Some of the reasons to Export/Import Tool Libraries.
·
Backup a library onto your local computer
·
Share your library
with others
·
Receive a library from a tooling supplier
·
Duplicate a library and edit the Feed & Speeds for a different machine
·
Edit or add to the library contents in a spread sheet
To Export a Tool Library:
Right-click on the library and select Export Tool Library from the pop-up menu.
Choose a folder location on your system and enter a name for the exported library file.
Select the Export format for the file. The default is a .tools extension. There are several formats to choose from. Each type is explained below. Press Save to finish the Export process.
If your goal is to simply backup your tool library, the .tools format will work fine. The other options include...
·
Fusion 360 .json - is
a Java Script format. This is the default format for
Fusion 360
·
HSM Tool
Library .hsmlib - is a format interchangeable with Inventor HSM and HSMWorks
·
Tab Separated
Values .tsv - is a Tab delimited file that can be
used in a spreadsheet, like Excel
·
Fusion 360 zipped .tools - is the same as the Fusion .json file, but in a zipped format
To Import a Tool Library:
Right-click on the your Local Library and select Import Tool Library from the pop-up menu.

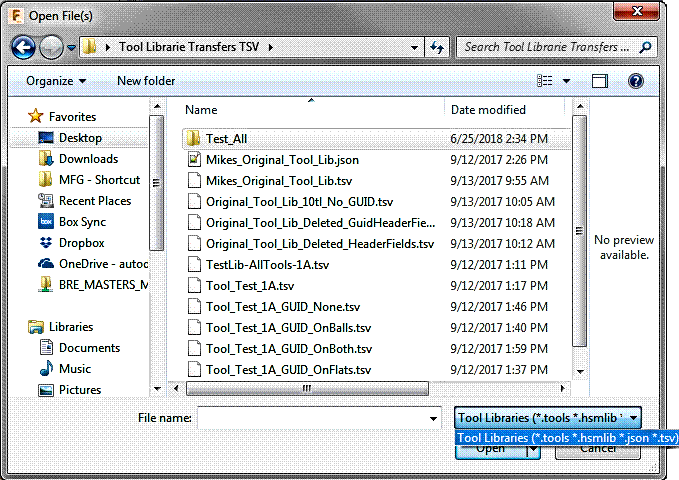

Go to the location of the library file on your system and select the file to Import.
1.
Press Open to start the Import process.
The
system will create a new
Library in your Local folder
with the same name as the Imported file.
|
